PLASMA CUTTINGMA CUTTING trafimet.com trafimet.com
L
S
A

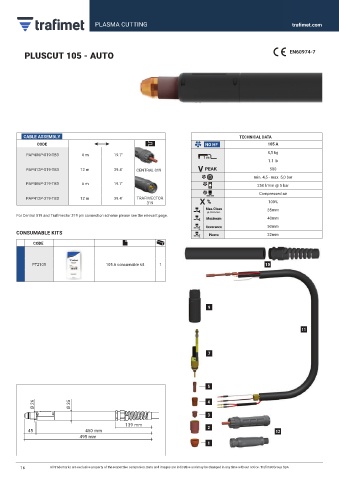

PLUSCUT 105 - AUTO EN60974-7

CABLE ASSEMBLY TECHNICAL DATA
CODE NO HF 105 A
0,5 kg
PAP406P-019-TB3 6 m 19.7’
1 m
1.1 lb
PAP412P-019-TB3 12 m 39.4’ CENTRAL 019 500
min. 4,5 - max. 5,0 bar
PAP406P-319-TB3 6 m 19.7’ 250 l/min @ 5 bar
Compressed air
PAP412P-319-TB3 12 m 39.4’ TRAFIMECTOR
319 % 100%
Max.Clean 35mm
@ 25cm/min.
For Central 019 and Trafimector 319 pin connection scheme please see the relevant page.
Maximum 40mm
Severance 50mm
CONSUMABLE KITS Pierce 22mm

CODE

PT2105 105 A consumable kit 1 10

9

11

7

5

Ø 26 Ø 35 4
3
139 mm
45 450 mm 2 12
495 mm
1
