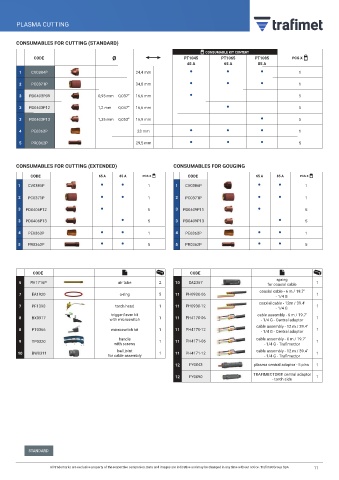

PLASMA CUTTING
EXPRESCUT S

CONSUMABLES FOR CUTTING (STANDARD)
CONSUMABLE KIT CONTENT
CODE Ø PT1045 PT1065 PT1085
45 A 65 A 85 A
• • •
1 CV0384P 24,4 mm 1

2 PC0371P 34,8 mm • • • 1
3 PD0403P09 0,95 mm 0,037” 16,6 mm • 5
•
3 PD0403P12 1,2 mm 0,047” 16,6 mm 5

3 PD0403P13 1,35 mm 0,053” 16,9 mm • 5
4 PE0363P 23 mm • • • 1
• • •
5 PR0362P 29,5 mm 5

CONSUMABLES FOR CUTTING (EXTENDED) CONSUMABLES FOR GOUGING
CODE 65 A 85 A CODE 65 A 85 A
1 CV0385P • • 1 1 CV0386P • • 1

2 PC0371P • • 1 2 PC0371P • • 1
3 PD0406P12 • 5 3 PD0409P11 • 5

3 PD0406P13 • 5 3 PD0409P13 • 5
4 PE0363P • • 1 4 PE0363P • • 1
• • • •
5 PR0363P 5 5 PR0362P 5

CODE CODE
spring
6 FH1716P air tube 2 10 EA2367 for coaxial cable 1
coaxial cable - 6 m / 19.7’
7 EA1920 o-ring 5 11 PH0930-06 - 1/4 G 1
coaxial cable - 12m / 39.4’
7 PF1390 torch head 1 11 PH0930-12 - 1/4 G 1
trigger/lever kit cable assembly - 6 m / 19.7’
8 BX0917 with microswitch 1 11 PH4170-06 - 1/4 G - Central adaptor 1
cable assembly - 12 m / 39.4’
8 PT0366 microswitch kit 1 11 PH4170-12 - 1/4 G - Central adaptor 1
handle cable assembly - 6 m / 19.7’
9 TP0320 1 11 PH4171-06 1
with screws - 1/4 G - Trafimector
10 BW0311 ball joint 1 11 PH4171-12 cable assembly - 12 m / 39.4’ 1
for cable assembly - 1/4 G - Trafimector
12 FY0043 plasma central adaptor - 5 pins 1
TRAFIMECTOR® central adaptor
12 FY0090 1
- torch side

STANDARD
