PLASMA CUT TIN G trafimet.com trafimet.com
PLASMA CUTTING

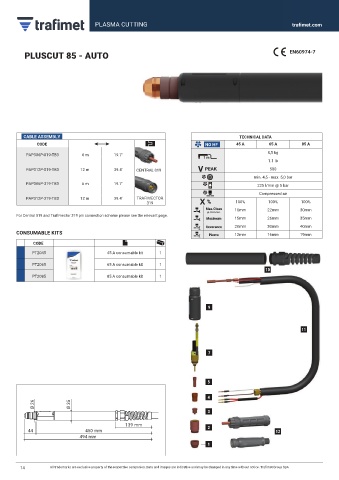

PLUSCUT 85 - AUTO EN60974-7

CABLE ASSEMBLY TECHNICAL DATA
CODE NO HF 45 A 65 A 85 A
0,5 kg
PAP306P-019-TB3 6 m 19.7’
1 m
1.1 lb
PAP312P-019-TB3 12 m 39.4’ CENTRAL 019 500
min. 4,5 - max. 5,0 bar
PAP306P-319-TB3 6 m 19.7’ 225 l/min @ 5 bar
Compressed air
PAP312P-319-TB3 12 m 39.4’ TRAFIMECTOR
319 % 100% 100% 100%
Max.Clean 10mm 22mm 30mm
@ 25cm/min.
For Central 019 and Trafimector 319 pin connection scheme please see the relevant page.
Maximum 15mm 26mm 35mm
Severance 20mm 30mm 40mm
CONSUMABLE KITS Pierce 12mm 16mm 19mm

CODE
PT2045 45 A consumable kit 1
PT2065 65 A consumable kit 1
10
PT2085 85 A consumable kit 1

9

11

7

5

4
Ø 26 Ø 35
3
139 mm
44 450 mm 2 12
494 mm
1

14 All trademarks are exclusive property of the respective companies. Data and images are indicative and may be changed in any time without notice. Trafimet Group SpA
