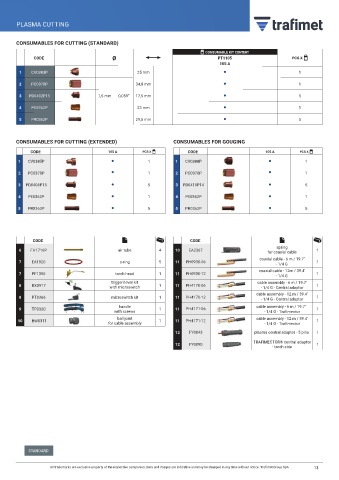

EXPRESCUT SSMA CUTTING
A
CONSUMABLES FOR CUTTING (STANDARD)
CONSUMABLE KIT CONTENT
CODE Ø PT1105
105 A
•
1 CV0383P 25 mm 1

2 PC0370P 34,8 mm • 1
3 PD0402P15 1,5 mm 0,059” 17,5 mm • 5
•
4 PE0362P 23 mm 1

5 PR0362P 29,5 mm • 5

CONSUMABLES FOR CUTTING (EXTENDED) CONSUMABLES FOR GOUGING

CODE 105 A CODE 105 A
• •
1 CV0385P 1 1 CV0388P 1
• •
2 PC0370P 1 2 PC0370P 1

3 PD0406P15 • 5 3 PD0410P14 • 5
• •
4 PE0362P 1 4 PE0362P 1
• •
5 PR0363P 5 5 PR0362P 5

CODE CODE
spring
6 FH1716P air tube 4 10 EA2367 for coaxial cable 1
coaxial cable - 6 m / 19.7’
7 EA1920 o-ring 5 11 PH0930-06 - 1/4 G 1
coaxial cable - 12m / 39.4’
7 PF1390 torch head 1 11 PH0930-12 1
- 1/4 G
trigger/lever kit cable assembly - 6 m / 19.7’
8 BX0917 with microswitch 1 11 PH4170-06 - 1/4 G - Central adaptor 1
cable assembly - 12 m / 39.4’
8 PT0366 microswitch kit 1 11 PH4170-12 - 1/4 G - Central adaptor 1
handle cable assembly - 6 m / 19.7’
9 TP0320 1 11 PH4171-06 1
with screws - 1/4 G - Trafimector
ball joint cable assembly - 12 m / 39.4’
10 BW0311 1 11 PH4171-12 1
for cable assembly - 1/4 G - Trafimector
12 FY0043 plasma central adaptor - 5 pins 1
TRAFIMECTOR® central adaptor
12 FY0090 1
- torch side

STANDARD
