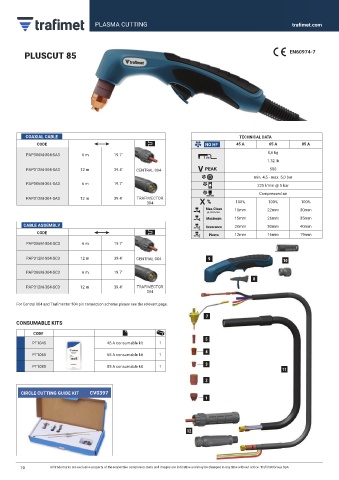

PLASMA CUTTING

PLUSCUT 85 EN60974-7

COAXIAL CABLE TECHNICAL DATA
CODE NO HF 45 A 65 A 85 A
0,6 kg
PAP306M-004-SA3 6 m 19.7’
1 m
1.32 lb
PAP312M-004-SA3 12 m 39.4’ CENTRAL 004 500
min. 4,5 - max. 5,0 bar
PAP306M-304-SA3 6 m 19.7’ 225 l/min @ 5 bar
Compressed air
PAP312M-304-SA3 12 m 39.4’ TRAFIMECTOR
304 % 100% 100% 100%
Max.Clean 10mm 22mm 30mm
@ 25cm/min.
Maximum 15mm 26mm 35mm
CABLE ASSEMBLY Severance 20mm 30mm 40mm
CODE Pierce 12mm 16mm 19mm

PAP306M-004-SC3 6 m 19.7’

PAP312M-004-SC3 12 m 39.4’ CENTRAL 004 9 10

PAP306M-304-SC3 6 m 19.7’
8
PAP312M-304-SC3 12 m 39.4’ TRAFIMECTOR
304

For Central 004 and Trafimector 304 pin connection scheme please see the relevant page.

7
CONSUMABLE KITS
CODE
5
PT1045 45 A consumable kit 1
4
PT1065 65 A consumable kit 1
3
PT1085 85 A consumable kit 1
11
2

CIRCLE CUTTING GUIDE KIT CV0397
1

12

10 All trademarks are exclusive property of the respective companies. Data and images are indicative and may be changed in any time without notice. Trafimet Group SpA
