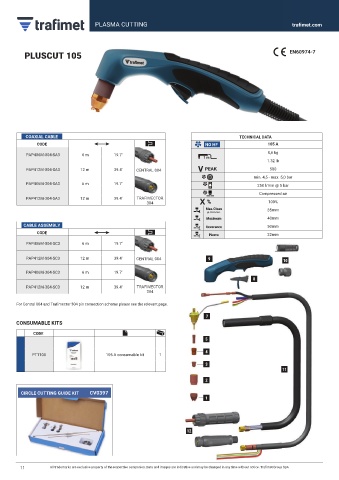

PLUSCUT 105 EN60974-7

COAXIAL CABLE TECHNICAL DATA
CODE NO HF 105 A
0,6 kg
PAP406M-004-SA3 6 m 19.7’
1 m
1.32 lb
PAP412M-004-SA3 12 m 39.4’ CENTRAL 004 500
min. 4,5 - max. 5,0 bar
PAP406M-304-SA3 6 m 19.7’ 250 l/min @ 5 bar
Compressed air
PAP412M-304-SA3 12 m 39.4’ TRAFIMECTOR
304 % 100%
Max.Clean 35mm
@ 25cm/min.
Maximum 40mm
CABLE ASSEMBLY Severance 50mm
CODE Pierce 22mm

PAP406M-004-SC3 6 m 19.7’

PAP412M-004-SC3 12 m 39.4’ CENTRAL 004 9 10

PAP406M-304-SC3 6 m 19.7’
8
PAP412M-304-SC3 12 m 39.4’ TRAFIMECTOR
304

For Central 004 and Trafimector 304 pin connection scheme please see the relevant page.

7
CONSUMABLE KITS
CODE
5
4
PT1105 105 A consumable kit 1
3
11

2

CIRCLE CUTTING GUIDE KIT CV0397
1

12
