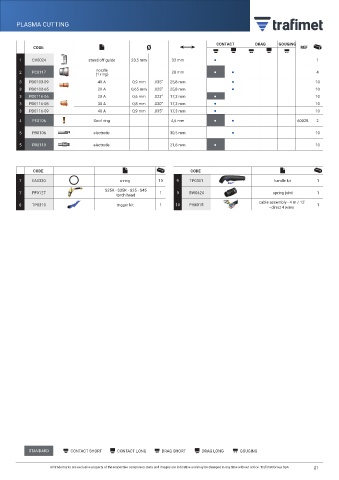

PLASMA CUTTING
EXPRESCUT S

CODE Ø CONTACT DRAG GOUGING REF
1 CV0024 stand off guide 23,5 mm 33 mm • 1

nozzle
2 PC0117 (1 ring) 28 mm • • 4
3 PD0103-09 40 A 0,9 mm .035” 25,8 mm • 10
3 PD0103-65 20 A 0,65 mm .025” 25,8 mm • 10
3 PD0116-06 20 A 0,6 mm .023” 17,3 mm • 10
3 PD0116-08 30 A 0,8 mm .030” 17,3 mm • 10
3 PD0116-09 40 A 0,9 mm .035” 17,3 mm • 10
• •
4 PE0106 Swirl ring 4,6 mm 60028 2
•
5 PR0106 electrode 30,5 mm 10
5 PR0110 electrode 21,8 mm • 10

CODE CODE
7 EA0330 o-ring 10 9 TP0301 handle kit 1
S25K - S35K - S25 - S45
7 PF0127 torch head 1 9 BW0424 spring joint 1
cable assembly - 4 m / 12’
8 TP0310 trigger kit 1 10 PH4015 1
- direct 4 wires

STANDARD CONTACT SHORT CONTACT LONG DRAG SHORT DRAG LONG GOUGING
