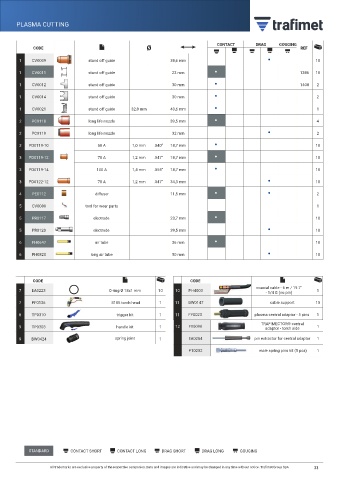

PLASMA CUTTING
EXPRESCUT S

CODE Ø CONTACT DRAG GOUGING REF

1 CV0009 stand off guide 38,6 mm • 10
1 CV0011 stand off guide 23 mm • 1386 10
•
1 CV0012 stand off guide 30 mm 1408 2
•
1 CV0014 stand off guide 30 mm 2
1 CV0021 stand off guide 32,8 mm 40,6 mm • 1

2 PC0118 long life nozzle 39,5 mm • 4
•
2 PC0119 long life nozzle 32 mm 2
•
3 PD0119-10 50 A 1,0 mm .040” 18,7 mm 10

3 PD0119-12 70 A 1,2 mm .047” 18,7 mm • 10
•
3 PD0119-14 100 A 1,4 mm .055” 18,7 mm 10
•
3 PD0122-12 70 A 1,2 mm .047” 34,3 mm 10

4 PE0112 diffuser 11,5 mm • • 2
5 CV0080 tool for wear parts 1
•
5 PR0117 electrode 23,7 mm 10
•
5 PR0120 electrode 39,5 mm 10
6 FH0647 air tube 36 mm • 10

6 FH0820 long air tube 50 mm • 10

CODE CODE
coaxial cable - 6 m / 19.7’
7 EA0223 O-ring Ø 18x1 mm 10 10 PH4003 - 1/4 G (no pin) 1

7 PF0136 S105 torch head 1 11 BW0147 cable support 10
8 TP0310 trigger kit 1 11 FY0023 plasma central adaptor - 5 pins 1
TRAFIMECTOR® central
9 TP0303 handle kit 1 12 FY0090 adaptor - torch side 1

9 BW0424 spring joint 1 EA0254 pin extractor for central adaptor 1
PT0202 male spring pins kit (5 pcs) 1

STANDARD CONTACT SHORT CONTACT LONG DRAG SHORT DRAG LONG GOUGING
