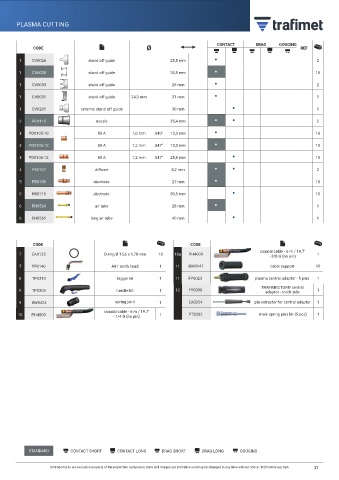

PLASMA CUTTING
EXPRESCUT S

CODE Ø CONTACT DRAG GOUGING REF

1 CV0026 stand off guide 25,5 mm • 2
1 CV0028 stand off guide 20,5 mm • 10
•
1 CV0033 stand off guide 26 mm 2
•
1 CV0051 stand off guide 24,3 mm 31 mm 1
1 CV0201 ceramic stand off guide 30 mm • 1

2 PC0115 nozzle 35,4 mm • • 2
•
3 PD0105-10 50 A 1,0 mm .040” 13,3 mm 10
•
3 PD0105-12 80 A 1,2 mm .047” 13,3 mm 10

3 PD0106-12 80 A 1,2 mm .047” 25,8 mm • 10
• •
4 PE0107 diffuser 8,2 mm 2
•
5 PR0109 electrode 27 mm 10

5 PR0115 electrode 39,5 mm • 10
6 FH0560 air tube 28 mm • 1
•
6 FH0561 long air tube 40 mm 1

CODE CODE
coaxial cable - 6 m / 19.7’
7 EA0125 O-ring Ø 15,6 x 1,78 mm 10 10a PH4009 - 3/8 G (no pin) 1

7 PF0140 A81 torch head 1 11 BW0147 cable support 10
8 TP0310 trigger kit 1 11 FY0023 plasma central adaptor - 5 pins 1
TRAFIMECTOR® central
9 TP0303 handle kit 1 12 FY0090 adaptor - torch side 1

9 BW0424 spring joint 1 EA0254 pin extractor for central adaptor 1
coaxial cable - 6 m / 19.7’
10 PH4003 - 1/4 G (no pin) 1 PT0202 male spring pins kit (5 pcs) 1

STANDARD CONTACT SHORT CONTACT LONG DRAG SHORT DRAG LONG GOUGING
