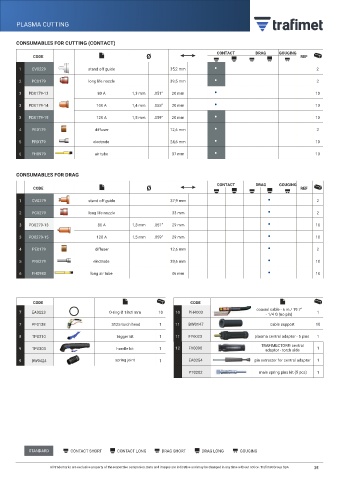

EXPRESCUT SSMA CUTTING
P
CONSUMABLES FOR CUTTING (CONTACT)

CODE Ø CONTACT DRAG GOUGING REF
1 CV0229 stand off guide 35,2 mm • 2

2 PC0179 long life nozzle 39,5 mm • 2
•
3 PD0179-13 80 A 1,3 mm .051” 20 mm 10
•
3 PD0179-14 100 A 1,4 mm .055” 20 mm 10
3 PD0179-15 120 A 1,5 mm .059” 20 mm • 10

4 PE0179 diffuser 12,6 mm • 2
•
5 PR0179 electrode 24,6 mm 10
•
6 FH0979 air tube 37 mm 10

CONSUMABLES FOR DRAG

CODE Ø CONTACT DRAG GOUGING REF
•
1 CV0279 stand off guide 37,9 mm 2

2 PC0279 long life nozzle 33 mm • 2
•
3 PD0279-13 80 A 1,3 mm .051” 29 mm 10
•
3 PD0279-15 120 A 1,5 mm .059” 29 mm 10

4 PE0179 diffuser 12,6 mm • 2

5 PR0279 electrode 33,6 mm • 10
•
6 FH0980 long air tube 46 mm 10

CODE CODE
coaxial cable - 6 m / 19.7’
7 EA0223 O-ring Ø 18x1 mm 10 10 PH4003 - 1/4 G (no pin) 1
7 PF0138 S125 torch head 1 11 BW0147 cable support 10

8 TP0310 trigger kit 1 11 FY0023 plasma central adaptor - 5 pins 1
TRAFIMECTOR® central
9 TP0303 handle kit 1 12 FY0090 adaptor - torch side 1
9 BW0424 spring joint 1 EA0254 pin extractor for central adaptor 1

PT0202 male spring pins kit (5 pcs) 1
