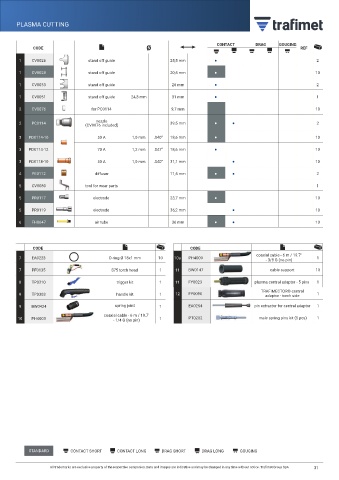

PLASMA CUTTING
EXPRESCUT S

CODE Ø CONTACT DRAG GOUGING REF

1 CV0026 stand off guide 25,5 mm • 2
1 CV0028 stand off guide 20,5 mm • 10
•
1 CV0033 stand off guide 26 mm 2
•
1 CV0051 stand off guide 24,3 mm 31 mm 1
2 CV0076 for PC0114 9,7 mm 10

2 PC0114 nozzle 39,5 mm • • 2
(CV0076 included)
•
3 PD0114-10 50 A 1,0 mm .040” 18,6 mm 10
3 PD0114-12 70 A 1,2 mm .047” 18,6 mm • 10

3 PD0118-10 50 A 1,0 mm .040” 31,1 mm • 10
• •
4 PE0112 diffuser 11,5 mm 2
5 CV0080 tool for wear parts 1

5 PR0117 electrode 23,7 mm • 10
5 PR0119 electrode 36,2 mm • 10

• •
6 FH0647 air tube 36 mm 10

CODE CODE
coaxial cable - 6 m / 19.7’
7 EA0223 O-ring Ø 18x1 mm 10 10a PH4009 - 3/8 G (no pin) 1

7 PF0135 S75 torch head 1 11 BW0147 cable support 10
8 TP0310 trigger kit 1 11 FY0023 plasma central adaptor - 5 pins 1
TRAFIMECTOR® central
9 TP0303 handle kit 1 12 FY0090 adaptor - torch side 1
9 BW0424 spring joint 1 EA0254 pin extractor for central adaptor 1
coaxial cable - 6 m / 19.7’
10 PH4003 - 1/4 G (no pin) 1 PT0202 male spring pins kit (5 pcs) 1

STANDARD CONTACT SHORT CONTACT LONG DRAG SHORT DRAG LONG GOUGING
