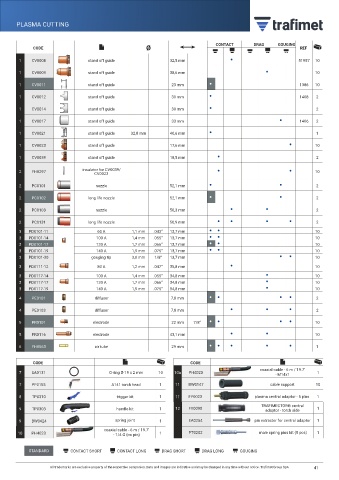

Page 41 - trafimet

PLASMA CUTTING
EXPRESCUT S

CODE Ø CONTACT DRAG GOUGING REF

1 CV0008 stand off guide 32,5 mm • 51957 10
1 CV0009 stand off guide 38,6 mm • 10
•
1 CV0011 stand off guide 23 mm 1386 10
•
1 CV0012 stand off guide 30 mm 1408 2
1 CV0014 stand off guide 30 mm • 2

1 CV0017 stand off guide 33 mm • 1406 2
•
1 CV0021 stand off guide 32,8 mm 40,6 mm 1
•
1 CV0023 stand off guide 17,6 mm 10

1 CV0039 stand off guide 18,5 mm • 2

2 FH0297 insulator for CV0039/ • • 10
CV0023
• •
2 PC0101 nozzle 52,1 mm 2

2 PC0102 long life nozzle 52,1 mm • • 2
2 PC0103 nozzle 50,3 mm • • 2
• • • •
2 PC0131 long life nozzle 50,9 mm 2
• •
3 PD0101-11 60 A 1,1 mm .043” 13,7 mm 10
3 PD0101-14 100 A 1,4 mm .055” 13,7 mm • • 10
3 PD0101-17 130 A 1,7 mm .066” 13,7 mm • • 10
3 PD0101-19 140 A 1,9 mm .075” 13,7 mm • • 10
3 PD0101-30 gouging tip 3,0 mm 1/8” 13,7 mm • • 10
•
3 PD0111-12 80 A 1,2 mm .047” 35,8 mm 10
•
3 PD0117-14 100 A 1,4 mm .055” 34,8 mm 10
3 PD0117-17 130 A 1,7 mm .066” 34,8 mm • 10
3 PD0117-19 140 A 1,9 mm .075” 34,8 mm • 10
• • • •
4 PE0101 diffuser 7,8 mm 2
4 PE0103 diffuser 7,8 mm • • • 2

5 PR0101 electrode 22 mm 7/8” • • • • 10
• •
5 PR0116 electrode 43,1 mm 10
• • • • •
6 FH0563 air tube 29 mm 1

CODE CODE
coaxial cable - 6 m / 19.7’
7 EA0131 O-ring Ø 19 x 2 mm 10 10a PH4020 - M14x1 1

7 PF0155 A141 torch head 1 11 BW0147 cable support 10
8 TP0310 trigger kit 1 11 FY0023 plasma central adaptor - 5 pins 1
TRAFIMECTOR® central
9 TP0303 handle kit 1 12 FY0090 adaptor - torch side 1

9 BW0424 spring joint 1 EA0254 pin extractor for central adaptor 1
coaxial cable - 6 m / 19.7’
10 PH4023 - 1/4 G (no pin) 1 PT0202 male spring pins kit (5 pcs) 1

STANDARD CONTACT SHORT CONTACT LONG DRAG SHORT DRAG LONG GOUGING
