TIG WELDING trafimet.com

E
N60974-7

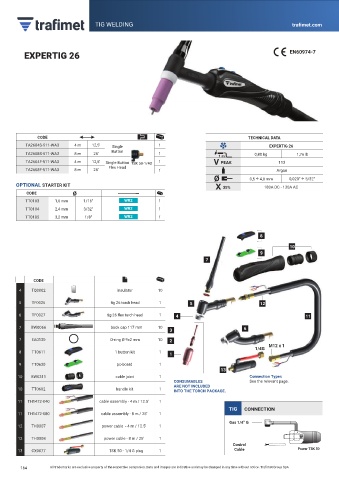

EXPERTIG 26 EN60974-7

CODE TECHNICAL DATA
TA2604S-511-WA3 4 m 12,5’ Single 1 EXPERTIG 26
TA2608S-511-WA3 8 m 25’ Button 1 1 m 0,80 kg 1,76 lb
TA2604F-511-WA3 4 m 12,5’ Single Button TSK 50-1/4G 1 V PEAK 113
Flex Head
TA2608F-511-WA3 8 m 25’ 1 Argon
Ø 0,5 ÷ 4,0 mm 0,020” ÷ 5/32”
OPTIONAL STARTER KIT
35% 180A DC - 130A AC
CODE Ø
TT0103 1,6 mm 1/16” WR2 1
TT0104 2,4 mm 3/32” WR2 1
TT0105 3,2 mm 1/8” WR2 1

8
10
10
10
9 9 9
7

CODE
4 TQ0002 insulator 10

5 TF0026 tig 26 torch head 1 5 12
12
6 TF0027 tig 26 flex torch head 1 4 11

7 BW0066 back cap 117 mm 10 6
3
7 EA0130 O-ring Ø 9x2 mm 10 2
M12 x 1
1/4G
8 TT0611 1 button kit 1 1
9 TT0630 pc-board 1
13
10 BW0311 cable joint 1 Connection Types
CONSUMABLES See the relevant page.
ARE NOT INCLUDED
10 TT0602 handle kit 1 INTO THE TORCH PACKAGE. TSKM 25
11 TH1472-040 cable assembly - 4 m / 12.5’ 1
TIG CONNECTION
11 TH1472-080 cable assembly - 8 m / 25’ 1
Gas 1/4” G
12 TH0007 power cable - 4 m / 12.5’ 1

12 TH0008 power cable - 8 m / 25’ 1
Control
13 CX0077 TSK 50 - 1/4 G plug 1 Cable Power TSK 50
