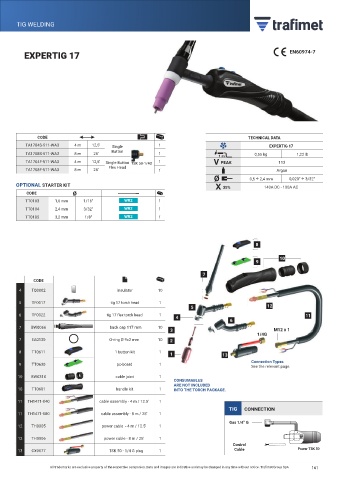

Page 161 - trafimet

TIG WELDING
EXPRESCUT S

EXPERTIG 17 EN60974-7

CODE TECHNICAL DATA
TA1704S-511-WA3 4 m 12,5’ Single 1 EXPERTIG 17
TA1708S-511-WA3 8 m 25’ Button 1 1 m 0,55 kg 1,22 lb
TA1704F-511-WA3 4 m 12,5’ Single Button TSK 50-1/4G 1 V PEAK 113
Flex Head
TA1708F-511-WA3 8 m 25’ 1 Argon
Ø 0,5 ÷ 2,4 mm 0,020” ÷ 3/32”
OPTIONAL STARTER KIT
35% 140A DC - 100A AC
CODE Ø
TT0103 1,6 mm 1/16” WR2 1
TT0104 2,4 mm 3/32” WR2 1
TT0105 3,2 mm 1/8” WR2 1

8

10
10
10
9 9 9
7 7
CODE
4 TQ0002 insulator 10

5 TF0017 tig 17 torch head 1
12
5 12
6 TF0022 tig 17 flex torch head 1 4 11
6
7 BW0066 back cap 117 mm 10
3 M12 x 1
1/4G
7 EA0130 O-ring Ø 9x2 mm 10 2
8 TT0611 1 button kit 1 1 13

Connection Types
9 TT0630 pc-board 1
See the relevant page.
10 BW0310 cable joint 1
CONSUMABLES
ARE NOT INCLUDED
10 TT0601 handle kit 1 INTO THE TORCH PACKAGE. TSKM 25
11 TH1471-040 cable assembly - 4 m / 12.5’ 1
TIG CONNECTION
11 TH1471-080 cable assembly - 8 m / 25’ 1
Gas 1/4” G
12 TH0005 power cable - 4 m / 12.5’ 1

12 TH0006 power cable - 8 m / 25’ 1
Control
13 CX0077 TSK 50 - 1/4 G plug 1 Cable Power TSK 50

All trademarks are exclusive property of the respective companies. Data and images are indicative and may be changed in any time without notice. Trafimet Group SpA 161
