TIG WELDING trafimet.com trafimet.com
PLASMA CUTTING

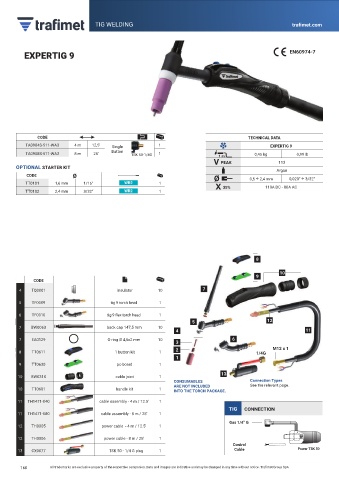

EXPERTIG 9 EN60974-7

CODE TECHNICAL DATA
TA0904S-511-WA3 4 m 12,5’ Single 1 EXPERTIG 9
TA0908S-511-WA3 8 m 25’ Button TSK 50-1/4G 1 1 m 0,45 kg 0,99 lb
V PEAK 113
OPTIONAL STARTER KIT
Argon
CODE Ø Ø 0,5 ÷ 2,4 mm 0,020” ÷ 3/32”
TT0101 1,6 mm 1/16” WR2 1
35% 110A DC - 80A AC
TT0102 2,4 mm 3/32” WR2 1

8

10
9
CODE
4 TQ0001 insulator 10 7

5 TF0009 tig 9 torch head 1
6 TF0010 tig 9 flex torch head 1
5 12
7 BW0063 back cap 147,5 mm 10
4 11
7 EA0129 O-ring Ø 4,5x2 mm 10 6
3
8 TT0611 1 button kit 1 2 1/4G M12 x 1
1
9 TT0630 pc-board 1
13
10 BW0310 cable joint 1
CONSUMABLES Connection Types
ARE NOT INCLUDED See the relevant page.
10 TT0601 handle kit 1 INTO THE TORCH PACKAGE. TSKM 25
11 TH1471-040 cable assembly - 4 m / 12.5’ 1
TIG CONNECTION
11 TH1471-080 cable assembly - 8 m / 25’ 1
Gas 1/4” G
12 TH0005 power cable - 4 m / 12.5’ 1

12 TH0006 power cable - 8 m / 25’ 1
Control
13 CX0077 TSK 50 - 1/4 G plug 1 Cable Power TSK 50

160 All trademarks are exclusive property of the respective companies. Data and images are indicative and may be changed in any time without notice. Trafimet Group SpA
