TIG WELDING trafimet.com trafimet.com
PLASMA CUTTING

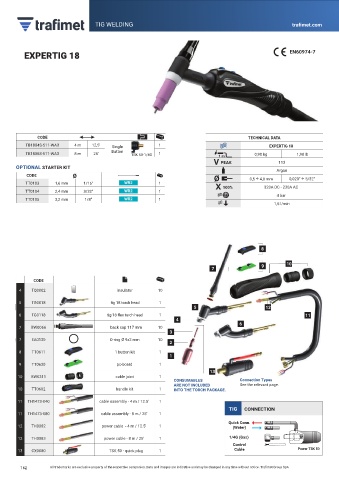

EXPERTIG 18 EN60974-7

CODE TECHNICAL DATA
TB1804S-511-WA3 4 m 12,5’ Single 1 EXPERTIG 18
TB1808S-511-WA3 8 m 25’ Button TSK 50-1/4G 1 1 m 0,90 kg 1,98 lb
V PEAK 113
OPTIONAL STARTER KIT
Argon
CODE Ø Ø 0,5 ÷ 4,0 mm 0,020” ÷ 5/32”
TT0103 1,6 mm 1/16” WR2 1
100% 320A DC - 230A AC
TT0104 2,4 mm 3/32” WR2 1
4 bar
TT0105 3,2 mm 1/8” WR2 1
1,5 l/min

8

10
10
7 7 9 9 9 10
CODE
4 TQ0002 insulator 10

5 TG0018 tig 18 torch head 1
5 12
12
6 TG0118 tig 18 flex torch head 1 11
4
6
7 BW0066 back cap 117 mm 10
3
7 EA0130 O-ring Ø 9x2 mm 10
2
8 TT0611 1 button kit 1
1
9 TT0630 pc-board 1
13
10 BW0311 cable joint 1
CONSUMABLES Connection Types
ARE NOT INCLUDED See the relevant page.
10 TT0602 handle kit 1 INTO THE TORCH PACKAGE. TSKM 25
11 TH1473-040 cable assembly - 4 m / 12.5’ 1
TIG CONNECTION
11 TH1473-080 cable assembly - 8 m / 25’ 1
Quick Conn.
12 TH0082 power cable - 4 m / 12.5’ 1 (Water)

12 TH0083 power cable - 8 m / 25’ 1 1/4G (Gas)
Control
13 CX0080 TSK 50 - quick plug 1 Cable Power TSK 50
