TIG WELDING
EXPRESCUT S

E
N60974-7

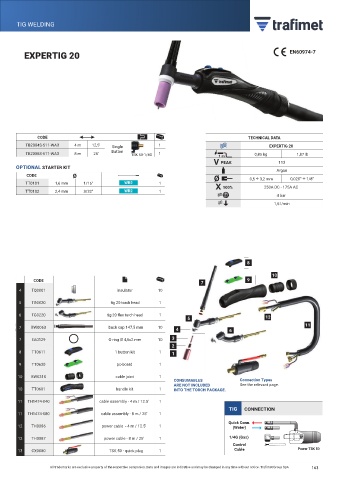

EXPERTIG 20 EN60974-7

CODE TECHNICAL DATA
TB2004S-511-WA3 4 m 12,5’ Single 1 EXPERTIG 20
TB2008S-511-WA3 8 m 25’ Button TSK 50-1/4G 1 1 m 0,85 kg 1,87 lb
V PEAK 113
OPTIONAL STARTER KIT
Argon
CODE Ø Ø 0,5 ÷ 3,2 mm 0,020” ÷ 1/8”
TT0101 1,6 mm 1/16” WR2 1
100% 250A DC - 175A AC
TT0102 2,4 mm 3/32” WR2 1
4 bar
1,5 l/min

8

10
CODE 7 9
4 TQ0001 insulator 10

5 TG0020 tig 20 torch head 1
6 TG0220 tig 20 flex torch head 1 12
5
11
7 BW0063 back cap 147,5 mm 10 4 6

7 EA0129 O-ring Ø 4,5x2 mm 10 3
2
8 TT0611 1 button kit 1 1

9 TT0630 pc-board 1

10 BW0310 cable joint 1
CONSUMABLES Connection Types
ARE NOT INCLUDED See the relevant page.
10 TT0601 handle kit 1 INTO THE TORCH PACKAGE. TSKM 25
11 TH1474-040 cable assembly - 4 m / 12.5’ 1
TIG CONNECTION
11 TH1474-080 cable assembly - 8 m / 25’ 1
Quick Conn.
12 TH0086 power cable - 4 m / 12.5’ 1 (Water)

12 TH0087 power cable - 8 m / 25’ 1 1/4G (Gas)
Control
13 CX0080 TSK 50 - quick plug 1 Cable Power TSK 50

All trademarks are exclusive property of the respective companies. Data and images are indicative and may be changed in any time without notice. Trafimet Group SpA 163
