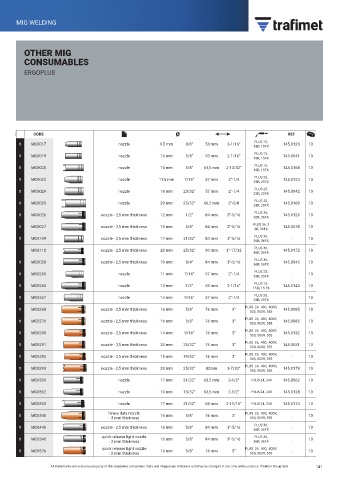

traf imet.com MIG WELDING

OTHER MIG
CONSUMABLES

ERGOPLUS

CODE REF
PLUS 15,
1 MC0017 nozzle 9,5 mm 3/8” 53 mm 2-1/16” 145.0123 10
15R, 15FX
PLUS 15,
1 MC0019 nozzle 16 mm 5/8” 53 mm 2-1/16” 15R, 15FX 145.0041 10
1 MC0020 nozzle 16 mm 5/8” 61,5 mm 2-13/32” PLUS 15, 145.0168 10
15R, 15FX
PLUS 25,
1 MC0022 nozzle 11,5 mm 7/16” 57 mm 2”-1/4 145.0124 10
25R, 25FX
PLUS 25,
1 MC0024 nozzle 18 mm 23/32” 57 mm 2”-1/4 25R, 25FX 145.0042 10
PLUS 25,
1 MC0025 nozzle 20 mm 25/32” 66,5 mm 2”-5/8 25R, 25FX 145.0169 10
1 MC0026 nozzle - 2,5 mm thickness 12 mm 1/2” 84 mm 3”-5/16 PLUS 36, 145.0126 10
36R, 36FX
PLUS 36, 3
1 MC0027 nozzle - 2,5 mm thickness 16 mm 5/8” 84 mm 3”-5/16 145.0078 10
6R, 36FX
PLUS 36,
1 MC0109 nozzle - 2,5 mm thickness 17 mm 21/32” 84 mm 3”-5/16 36R, 36FX - 10
MC0110 nozzle - 2,5 mm thickness 20 mm 25/32” 90 mm 3”-17/32 PLUS 36, 145.0172 10
36R, 36FX
PLUS 36,
1 MC0028 nozzle - 2,5 mm thickness 19 mm 3/4” 84 mm 3”-5/16 145.0045 10
36R, 36FX
PLUS 25,
1 MC0265 nozzle 11 mm 7/16” 57 mm 2”-1/4 25R, 25FX . 10
1 MC0266 nozzle 13 mm 1/2” 53 mm 2-1/16” PLUS 15, 145.0143 10
15 R, 15 FX
PLUS 25,
1 MC0267 nozzle 14 mm 9/16” 57 mm 2”-1/4 10
25R, 25FX
1 MC0268 nozzle - 2,5 mm thickness 16 mm 5/8” 76 mm 3” PLUS 26, 400, 400R, 145.0085 10
500, 500R, 555
1 MC0276 nozzle - 2,5 mm thickness 16 mm 5/8” 76 mm 3” PLUS 26, 400, 400R, 145.0085 10
500, 500R, 555
PLUS 26, 400, 400R,
1 MC0290 nozzle - 2,5 mm thickness 14 mm 9/16” 76 mm 3” 145.0132 10
500, 500R, 555
1 MC0291 nozzle - 2,5 mm thickness 20 mm 25/32” 76 mm 3” PLUS 26, 400, 400R, 145.0051 10
500, 500R, 555
1 MC0292 nozzle - 2,5 mm thickness 15 mm 19/32” 76 mm 3” PLUS 26, 400, 400R, - 10
500, 500R, 555
1 MC0293 nozzle - 2,5 mm thickness 20 mm 25/32” 82mm 3-7/32” PLUS 26, 400, 400R, 145.0179 10
500, 500R, 555
1 MC0300 nozzle 17 mm 21/32” 63,5 mm 2-1/2” PLUS 24, 240 145.0062 10
1 MC0302 nozzle 10 mm 13/32” 63,5 mm 2-1/2” PLUS 24, 240 145.0128 10

1 MC0303 nozzle 17 mm 21/32” 68 mm 2-11/16” PLUS 24, 240 145.0174 10
heavy duty nozzle PLUS 26, 400, 400R,
1 MC0340 16 mm 5/8” 76 mm 3” . 10
- 3 mm thickness 500, 500R, 555
PLUS 36,
1 MC0440 nozzle - 2,5 mm thickness 16 mm 5/8” 84 mm 3”-5/16 36R, 36FX - 10
quick release light nozzle PLUS 36,
1 MC0540 16 mm 5/8” 84 mm 3”-5/16 . 10
- 2 mm thickness 36R, 36FX
quick release light nozzle PLUS 26, 400, 400R,
1 MC0576 16 mm 5/8” 76 mm 3” - 10
- 2 mm thickness 500, 500R, 555
All trademarks are exclusive property of the respective companies. Data and images are indicative and may be changed in any time without notice. Trafimet Group SpA 141
