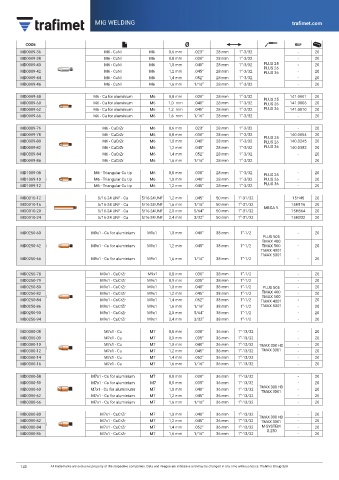

MIG WELDING traf imet.com

CODE REF
MD0009-36 M6 - CuNi M6 0,6 mm .023” 28 mm 1”-3/32 - 20
MD0009-38 M6 - CuNi M6 0,8 mm .030” 28 mm 1”-3/32 - 20
MD0009-40 M6 - CuNi M6 1,0 mm .040” 28 mm 1”-3/32 PLUS 25 - 20
PLUS 26
MD0009-42 M6 - CuNi M6 1,2 mm .045” 28 mm 1”-3/32 PLUS 36 - 20
MD0009-44 M6 - CuNi M6 1,4 mm .052” 28 mm 1”-3/32 - 20
MD0009-46 M6 - CuNi M6 1,6 mm 1/16” 28 mm 1”-3/32 - 20
MD0009-58 M6 - Cu for aluminium M6 0,8 mm .030” 28 mm 1”-3/32 PLUS 25 141.0001 20
MD0009-60 M6 - Cu for aluminium M6 1,0 mm .040” 28 mm 1”-3/32 PLUS 26 141.0006 20
MD0009-62 M6 - Cu for aluminium M6 1,2 mm .045” 28 mm 1”-3/32 PLUS 36 141.0010 20
MD0009-66 M6 - Cu for aluminium M6 1,6 mm 1/16” 28 mm 1”-3/32 - 20

MD0009-76 M6 - CuCrZr M6 0,6 mm .023” 28 mm 1”-3/32 - 20
MD0009-78 M6 - CuCrZr M6 0,8 mm .030” 28 mm 1”-3/32 PLUS 25 140.0054 20
MD0009-80 M6 - CuCrZr M6 1,0 mm .040” 28 mm 1”-3/32 PLUS 26 140.0245 20
MD0009-82 M6 - CuCrZr M6 1,2 mm .045” 28 mm 1”-3/32 PLUS 36 140.0382 20
MD0009-84 M6 - CuCrZr M6 1,4 mm .052” 28 mm 1”-3/32 - 20
MD0009-86 M6 - CuCrZr M6 1,6 mm 1/16” 28 mm 1”-3/32 20

MD1009-08 M6 - Triangular Cu tip M6 0,8 mm .030” 28 mm 1”-3/32 PLUS 25 - 20
MD1009-10 M6 - Triangular Cu tip M6 1,0 mm .040” 28 mm 1”-3/32 PLUS 26 - 20
MD1009-12 M6 - Triangular Cu tip M6 1,2 mm .045” 28 mm 1”-3/32 PLUS 36 - 20

MD0010-12 5/16-24 UNF - Cu 5/16-24 UNF 1,2 mm .045” 50 mm 1”-31/32 15H45 20
MD0010-16 5/16-24 UNF - Cu 5/16-24 UNF 1,6 mm 1/16” 50 mm 1”-31/32 MEGA 5 15H116 20
MD0010-20 5/16-24 UNF - Cu 5/16-24 UNF 2,0 mm 5/64” 50 mm 1”-31/32 15H564 20
MD0010-24 5/16-24 UNF - Cu 5/16-24 UNF 2,4 mm 3/32” 50 mm 1”-31/32 15H332 20

MD0250-60 M9x1 - Cu for aluminium M9x1 1,0 mm .040” 38 mm 1”-1/2 - 20
PLUS 505
TMAX 400
MD0250-62 M9x1 - Cu for aluminium M9x1 1,2 mm .045” 38 mm 1”-1/2 TMAX 500 - 20
TMAX 4001
TMAX 5001
MD0250-66 M9x1 - Cu for aluminium M9x1 1,6 mm 1/16” 38 mm 1”-1/2 - 20

MD0250-78 M9x1 - CuCrZr M9x1 0,8 mm .030” 38 mm 1”-1/2 - 20
MD0250-79 M9x1 - CuCrZr M9x1 0,9 mm .035” 38 mm 1”-1/2 - 20
MD0250-80 M9x1 - CuCrZr M9x1 1,0 mm .040” 38 mm 1”-1/2 PLUS 505 - 20
MD0250-82 M9x1 - CuCrZr M9x1 1,2 mm .045” 38 mm 1”-1/2 TMAX 400 - 20
TMAX 500
MD0250-84 M9x1 - CuCrZr M9x1 1,4 mm .052” 38 mm 1”-1/2 TMAX 4001 - 20
MD0250-86 M9x1 - CuCrZr M9x1 1,6 mm 1/16” 38 mm 1”-1/2 TMAX 5001 - 20
MD0250-90 M9x1 - CuCrZr M9x1 2,0 mm 5/64” 38 mm 1”-1/2 - 20
MD0250-94 M9x1 - CuCrZr M9x1 2,4 mm 3/32” 38 mm 1”-1/2 - 20

MD0300-08 M7x1 - Cu M7 0,8 mm .030” 36 mm 1”-13/32 - 20
MD0300-09 M7x1 - Cu M7 0,9 mm .035” 36 mm 1”-13/32 - 20
MD0300-10 M7x1 - Cu M7 1,0 mm .040” 36 mm 1”-13/32 TMAX 300 HD - 20
MD0300-12 M7x1 - Cu M7 1,2 mm .045” 36 mm 1”-13/32 TMAX 3001 - 20
MD0300-14 M7x1 - Cu M7 1,4 mm .052” 36 mm 1”-13/32 - 20
MD0300-16 M7x1 - Cu M7 1,6 mm 1/16” 36 mm 1”-13/32 - 20

MD0300-58 M7x1 - Cu for aluminium M7 0,8 mm .030” 36 mm 1”-13/32 - 20
MD0300-59 M7x1 - Cu for aluminium M7 0,9 mm .035” 36 mm 1”-13/32 - 20
MD0300-60 M7x1 - Cu for aluminiumr M7 1,0 mm .040” 36 mm 1”-13/32 TMAX 300 HD - 20
TMAX 3001
MD0300-62 M7x1 - Cu for aluminium M7 1,2 mm .045” 36 mm 1”-13/32 - 20
MD0300-66 M7x1 - Cu for aluminium M7 1,6 mm 1/16” 36 mm 1”-13/32 - 20
MD0300-80 M7x1 - CuCrZr M7 1,0 mm .040” 36 mm 1”-13/32 TMAX 300 HD - 20
MD0300-82 M7x1 - CuCrZr M7 1,2 mm .045” 36 mm 1”-13/32 TMAX 3001 - 20
MD0300-84 M7x1 - CuCrZr M7 1,4 mm .052” 36 mm 1”-13/32 M-SYSTEM - 20
MD0300-86 M7x1 - CuCrZr M7 1,6 mm 1/16” 36 mm 1”-13/32 G.250 - 20

140 All trademarks are exclusive property of the respective companies. Data and images are indicative and may be changed in any time without notice. Trafimet Group SpA
