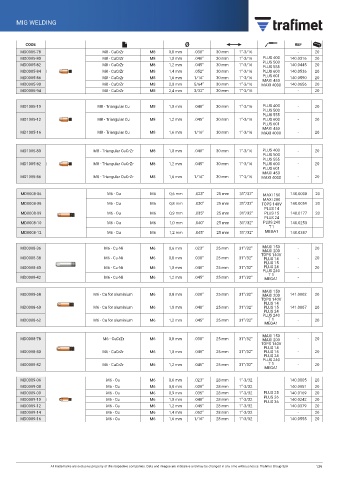

traf imet.com MIG WELDING

CODE REF
MD0005-78 M8 - CuCrZr M8 0,8 mm .030” 30 mm 1”-3/16 - 20
MD0005-80 M8 - CuCrZr M8 1,0 mm .040” 30 mm 1”-3/16 PLUS 400 140.0316 20
MD0005-82 M8 - CuCrZr M8 1,2 mm .045” 30 mm 1”-3/16 PLUS 500 140.0445 20
PLUS 555
MD0005-84 M8 - CuCrZr M8 1,4 mm .052” 30 mm 1”-3/16 PLUS 600 140.0536 20
MD0005-86 M8 - CuCrZr M8 1,6 mm 1/16” 30 mm 1”-3/16 PLUS 601 140.0590 20
MAXI 450
MD0005-90 M8 - CuCrZr M8 2,0 mm 5/64” 30 mm 1”-3/16 MAXI 4000 140.0656 20
MD0005-94 M8 - CuCrZr M8 2,4 mm 3/32” 30 mm 1”-3/16 - 20

MD1005-10 M8 - Triangular Cu M8 1,0 mm .040” 30 mm 1”-3/16 PLUS 400 - 20
PLUS 500
PLUS 555
MD1005-12 M8 - Triangular Cu M8 1,2 mm .045” 30 mm 1”-3/16 PLUS 600 - 20
PLUS 601
MAXI 450
MD1005-16 M8 - Triangular Cu M8 1,6 mm 1/16” 30 mm 1”-3/16 MAXI 4000 - 20

MD1005-80 M8 - Triangular CuCrZr M8 1,0 mm .040” 30 mm 1”-3/16 PLUS 400 - 20
PLUS 500
PLUS 555
MD1005-82 M8 - Triangular CuCrZr M8 1,2 mm .045” 30 mm 1”-3/16 PLUS 600 - 20
PLUS 601
MAXI 450
MD1005-86 M8 - Triangular CuCrZr M8 1,6 mm 1/16” 30 mm 1”-3/16 MAXI 4000 - 20

MD0008-06 M6 - Cu M6 0,6 mm .023” 25 mm 31”/32” MAXI 150 140.0008 20
MAXI 200
MD0008-08 M6 - Cu M6 0,8 mm .030” 25 mm 31”/32” TOPS 140V 140.0059 20
PLUS 14
MD0008-09 M6 - Cu M6 0,9 mm .035” 25 mm 31”/32” PLUS 15 140.0177 20
PLUS 24
MD0008-10 M6 - Cu M6 1,0 mm .040” 25 mm 31”/32” PLUS 240 140.0253
T 1
MD0008-12 M6 - Cu M6 1,2 mm .045” 25 mm 31”/32” MEGA1 140.0387

MD0008-36 M6 - Cu-Ni M6 0,6 mm .023” 25 mm 31”/32” MAXI 150 - 20
MAXI 200
TOPS 140V
MD0008-38 M6 - Cu-Ni M6 0,8 mm .030” 25 mm 31”/32” PLUS 14 - 20
PLUS 15
MD0008-40 M6 - Cu-Ni M6 1,0 mm .040” 25 mm 31”/32” PLUS 24 - 20
PLUS 240
T 1
MD0008-42 M6 - Cu-Ni M6 1,2 mm .045” 25 mm 31”/32” MEGA1 -
MAXI 150
MD0008-58 M6 - Cu for aluminium M6 0,8 mm .030” 25 mm 31”/32” MAXI 200 141.0002 20
TOPS 140V
PLUS 14
MD0008-60 M6 - Cu for aluminium M6 1,0 mm .040” 25 mm 31”/32” PLUS 15 141.0007 20
PLUS 24
PLUS 240
MD0008-62 M6 - Cu for aluminium M6 1,2 mm .045” 25 mm 31”/32” T 1 - 20
MEGA1
MAXI 150
MD0008-78 M6 - CuCrZr M6 0,8 mm .030” 25 mm 31”/32” MAXI 200 - 20
TOPS 140V
PLUS 14
MD0008-80 M6 - CuCrZr M6 1,0 mm .040” 25 mm 31”/32” PLUS 15 - 20
PLUS 24
PLUS 240
MD0008-82 M6 - CuCrZr M6 1,2 mm .045” 25 mm 31”/32” T 1 - 20
MEGA1
MD0009-06 M6 - Cu M6 0,6 mm .023” 28 mm 1”-3/32 140.0005 20
MD0009-08 M6 - Cu M6 0,8 mm .030” 28 mm 1”-3/32 140.0051 20
MD0009-09 M6 - Cu M6 0,9 mm .035” 28 mm 1”-3/32 PLUS 25 140.0169 20
MD0009-10 M6 - Cu M6 1,0 mm .040” 28 mm 1”-3/32 PLUS 26 140.0242 20
PLUS 36
MD0009-12 M6 - Cu M6 1,2 mm .045” 28 mm 1”-3/32 140.0379 20
MD0009-14 M6 - Cu M6 1,4 mm .052” 28 mm 1”-3/32 - 20
MD0009-16 M6 - Cu M6 1,6 mm 1/16” 28 mm 1”-3/32 140.0555 20

All trademarks are exclusive property of the respective companies. Data and images are indicative and may be changed in any time without notice. Trafimet Group SpA 139
