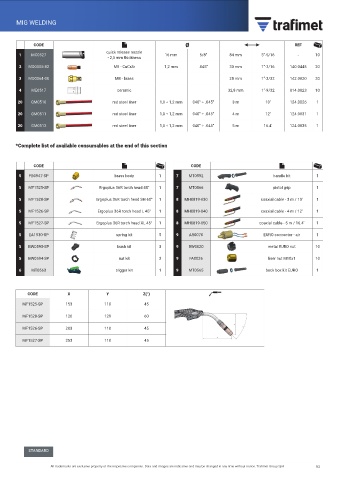

Page 93 - trafimet

traf imet.com MIG WELDING

CODE REF
EN60974-7 quick release nozzle
1 MC0527 16 mm 5/8” 84 mm 3”-5/16 - 10
- 2,5 mm thickness
2 MD0005-82 M8 - CuCrZr 1,2 mm .045” 30 mm 1”-3/16 140.0445 20

3 MD0064-00 M8 - brass 28 mm 1”-3/32 142.0020 20
4 ME0517 ceramic 32,8 mm 1”-9/32 014.0023 10

20 GM0510 red steel liner 1,0 ÷ 1,2 mm 040” ÷ .045” 3 m 10’ 124.0026 1
20 GM0511 red steel liner 1,0 ÷ 1,2 mm 040” ÷ .045” 4 m 12’ 124.0031 1

20 GM0512 red steel liner 1,0 ÷ 1,2 mm 040” ÷ .045” 5 m 16.4’ 124.0035 1

*Complete list of available consumables at the end of this section

CODE CODE
5 FB0947-SP brass body 1 7 MT0592 handle kit 1
5 MF1525-SP Ergoplus 36R torch head 45° 1 7 MT0566 pistol grip 1

5 MF1528-SP Ergoplus 36R torch head SH 60° 1 8 MH0819-030 coaxial cable - 3 m / 10’ 1

5 MF1526-SP Ergoplus 36R torch head L 45° 1 8 MH0819-040 coaxial cable - 4 m / 12’ 1
5 MF1527-SP Ergoplus 36R torch head XL 45° 1 8 MH0819-050 coaxial cable - 5 m / 16.4’ 1

5 EA1930-SP spring kit 5 9 AR0070 EURO connector - air 1
5 BW0595-SP bush kit 3 9 BW0020 metal EURO nut 10

5 BW0594-SP nut kit 3 9 FA0026 liner nut M10x1 10

6 MT0563 trigger kit 1 9 MT0565 back box kit EURO 1

CODE X Y Z(°)
MF1525-SP 153 110 45

MF1528-SP 120 129 60
MF1526-SP 203 110 45

MF1527-SP 253 110 45

STANDARD
