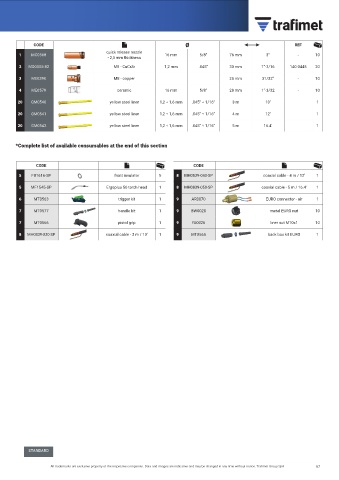

CODE REF
EN60974-7 quick release nozzle
1 MC0568 16 mm 5/8” 76 mm 3” - 10
- 2,5 mm thickness
2 MD0005-82 M8 - CuCrZr 1,2 mm .045” 30 mm 1”-3/16 140.0445 20

3 ME0390 M8 - copper 25 mm 31/32” - 10
4 ME0579 ceramic 16 mm 5/8” 28 mm 1”-3/32 - 10

20 GM0540 yellow steel liner 1,2 ÷ 1,6 mm .045” ÷ 1/16” 3 m 10’ 1
20 GM0541 yellow steel liner 1,2 ÷ 1,6 mm .045” ÷ 1/16” 4 m 12’ 1

20 GM0542 yellow steel liner 1,2 ÷ 1,6 mm .045” ÷ 1/16” 5 m 16.4’ 1

*Complete list of available consumables at the end of this section

CODE CODE
5 FB1616-SP front insulator 5 8 MH0839-040-SP coaxial cable - 4 m / 12’ 1
5 MF1545-SP Ergoplus 50 torch head 1 8 MH0839-050-SP coaxial cable - 5 m / 16.4’ 1

6 MT0563 trigger kit 1 9 AR0070 EURO connector - air 1

7 MT0577 handle kit 1 9 BW0020 metal EURO nut 10
7 MT0566 pistol grip 1 9 FA0026 liner nut M10x1 10

8 MH0839-030-SP coaxial cable - 3 m / 10’ 1 9 MT0565 back box kit EURO 1

STANDARD

All trademarks are exclusive property of the respective companies. Data and images are indicative and may be changed in any time without notice. Trafimet Group SpA 97
