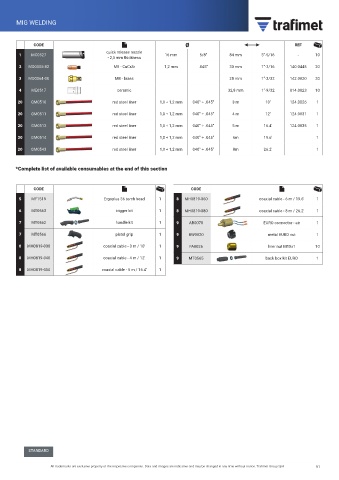

traf imet.com MIG WELDING

CODE REF
EN60974-7 quick release nozzle
1 MC0527 16 mm 5/8” 84 mm 3”-5/16 - 10
- 2,5 mm thickness
2 MD0005-82 M8 - CuCrZr 1,2 mm .045” 30 mm 1”-3/16 140.0445 20

3 MD0064-00 M8 - brass 28 mm 1”-3/32 142.0020 20
4 ME0517 ceramic 32,8 mm 1”-9/32 014.0023 10

20 GM0510 red steel liner 1,0 ÷ 1,2 mm 040” ÷ .045” 3 m 10’ 124.0026 1
20 GM0511 red steel liner 1,0 ÷ 1,2 mm 040” ÷ .045” 4 m 12’ 124.0031 1

20 GM0512 red steel liner 1,0 ÷ 1,2 mm 040” ÷ .045” 5 m 16.4’ 124.0035 1

20 GM0514 red steel liner 1,0 ÷ 1,2 mm 040” ÷ .045” 6m 19.6’ 1
20 GM0543 red steel liner 1,0 ÷ 1,2 mm 040” ÷ .045” 8m 26.2’ 1

*Complete list of available consumables at the end of this section

CODE CODE
5 MF1519 Ergoplus 36 torch head 1 8 MH0819-060 coaxial cable - 6 m / 19.6’ 1

6 MT0563 trigger kit 1 8 MH0819-080 coaxial cable - 8 m / 26.2’ 1
7 MT0562 handle kit 1 9 AR0070 EURO connector - air 1

7 MT0566 pistol grip 1 9 BW0020 metal EURO nut 1
8 MH0819-030 coaxial cable - 3 m / 10’ 1 9 FA0026 liner nut M10x1 10

8 MH0819-040 coaxial cable - 4 m / 12’ 1 9 MT0565 back box kit EURO 1
8 MH0819-050 coaxial cable - 5 m / 16.4’ 1

STANDARD

All trademarks are exclusive property of the respective companies. Data and images are indicative and may be changed in any time without notice. Trafimet Group SpA 91
