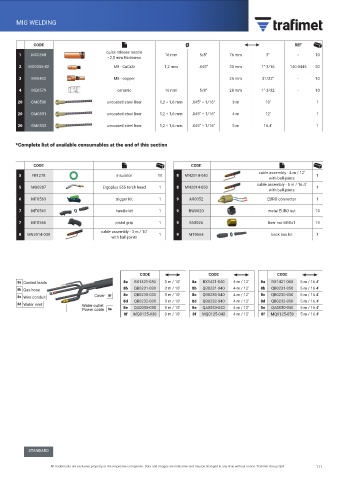

traf imet.com MIG WELDING

CODE REF
EN60974-7 quick release nozzle
1 MC0568 16 mm 5/8” 76 mm 3” - 10
- 2,5 mm thickness
2 MD0005-82 M8 - CuCrZr 1,2 mm .045” 30 mm 1”-3/16 140.0445 20

3 ME0402 M8 - copper 25 mm 31/32” - 10
4 ME0579 ceramic 16 mm 5/8” 28 mm 1”-3/32 - 10

20 GM0530 uncoated steel liner 1,2 ÷ 1,6 mm .045” ÷ 1/16” 3 m 10’ 1
20 GM0531 uncoated steel liner 1,2 ÷ 1,6 mm .045” ÷ 1/16” 4 m 12’ 1

20 GM0532 uncoated steel liner 1,2 ÷ 1,6 mm .045” ÷ 1/16” 5 m 16.4’ 1

*Complete list of available consumables at the end of this section

CODE CODE
cable assembly - 4 m / 12’
5 FB1278 insulator 10 8 MN2014-040 1
with ball-joints
cable assembly - 5 m / 16.4’
5 MG0287 Ergoplus 555 torch head 1 8 MN2014-050 1
with ball-joints
6 MT0563 trigger kit 1 9 AR0052 EURO connector 1

7 MT0561 handle kit 1 9 BW0020 metal EURO nut 10
7 MT0566 pistol grip 1 9 FA0026 liner nut M10x1 10
cable assembly - 3 m / 10’
8 MN2014-030 1 9 MT0564 back box kit 1
with ball-joints

CODE CODE CODE
8a BX1421-030 3 m / 10’ 8a BX1421-040 4 m / 12’ 8a BX1421-050 5 m / 16.4’
8b QB0231-030 3 m / 10’ 8b QB0231-040 4 m / 12’ 8b QB0231-050 5 m / 16.4’
8c QB0230-030 3 m / 10’ 8c QB0230-040 4 m / 12’ 8c QB0230-050 5 m / 16.4’
8d QB0232-030 3 m / 10’ 8d QB0232-040 4 m / 12’ 8d QB0232-050 5 m / 16.4’
8e QA0030-030 3 m / 10’ 8e QA0030-040 4 m / 12’ 8e QA0030-050 5 m / 16.4’
8f MQ0125-030 3 m / 10’ 8f MQ0125-040 4 m / 12’ 8f MQ0125-050 5 m / 16.4’

STANDARD
