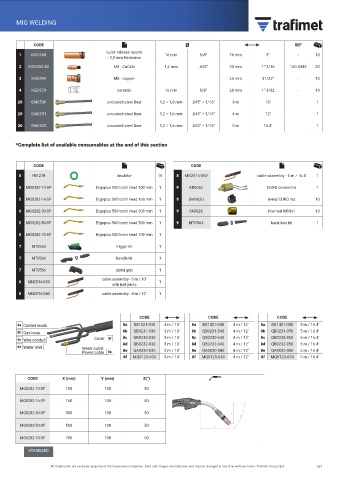

MIG WELDING
MIG WELDING
traf imet.com MIG WELDING

CODE REF
EN60974-7 quick release nozzle
1 MC0568 16 mm 5/8” 76 mm 3” - 10
- 2,5 mm thickness
2 MD0005-82 M8 - CuCrZr 1,2 mm .045” 30 mm 1”-3/16 140.0445 20

3 ME0390 M8 - copper 25 mm 31/32” - 10
4 ME0579 ceramic 16 mm 5/8” 28 mm 1”-3/32 - 10

20 GM0530 uncoated steel liner 1,2 ÷ 1,6 mm .045” ÷ 1/16” 3 m 10’ 1
20 GM0531 uncoated steel liner 1,2 ÷ 1,6 mm .045” ÷ 1/16” 4 m 12’ 1

20 GM0532 uncoated steel liner 1,2 ÷ 1,6 mm .045” ÷ 1/16” 5 m 16.4’ 1

*Complete list of available consumables at the end of this section

CODE CODE
5 FB1278 Insulator 10 8 MN2014-050 cable assembly - 5 m / 16.4’ 1
5 MG0282-10-SP Ergoplus 500 torch head 100 mm 1 9 AR0052 EURO connector 1

5 MG0282-16-SP Ergoplus 500 torch head 160 mm 1 9 BW0020 metal EURO nut 10

6 MG0282-30-SP Ergoplus 500 torch head 300 mm 1 9 FA0026 liner nut M10x1 10
5 MG0282-50-SP Ergoplus 500 torch head 500 mm 1 9 MT0564 back box kit 1

5 MG0282-70-SP Ergoplus 500 torch head 700 mm 1
7 MT0563 trigger kit 1

7 MT0560 handle kit 1
7 MT0566 pistol grip 1
cable assembly - 3 m / 10’
8 MN2014-030 1
with ball-joints
8 MN2014-040 cable assembly - 4 m / 12’ 1

CODE CODE CODE
8a BX1421-030 3 m / 10’ 8a BX1421-040 4 m / 12’ 8a BX1421-050 5 m / 16.4’
8b QB0231-030 3 m / 10’ 8b QB0231-040 4 m / 12’ 8b QB0231-050 5 m / 16.4’
8c QB0230-030 3 m / 10’ 8c QB0230-040 4 m / 12’ 8c QB0230-050 5 m / 16.4’
8d QB0232-030 3 m / 10’ 8d QB0232-040 4 m / 12’ 8d QB0232-050 5 m / 16.4’
8e QA0030-030 3 m / 10’ 8e QA0030-040 4 m / 12’ 8e QA0030-050 5 m / 16.4’
8f MQ0125-030 3 m / 10’ 8f MQ0125-040 4 m / 12’ 8f MQ0125-050 5 m / 16.4’

CODE X (mm) Y (mm) Z(°)
MG0282-10-SP 100 108 50

MG0282-16-SP 160 108 50

MG0282-30-SP 300 108 50

MG0282-50-SP 500 108 50
MG0282-70-SP 700 108 50

STANDARD
