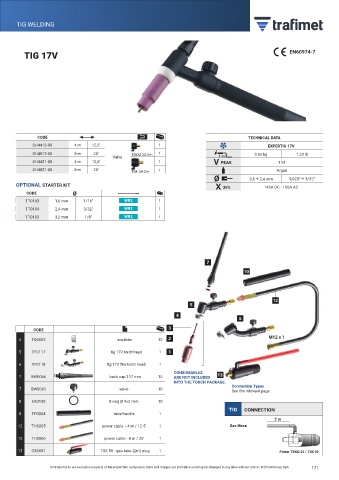

Page 171 - trafimet

TIG WELDING
EXPRESCUT S

TIG 17V EN60974-7

CODE TECHNICAL DATA
SH4413-00 4 m 12,5’ 1 EXPERTIG 17V
SH4813-00 8 m 25’ TSKM 25-2m 1 0,55 kg 1,22 lb
Valve 1 m
SH4431-00 4 m 12,5’ 1 V PEAK 113
SH4831-00 8 m 25’ TSK 50-2m 1 Argon
Ø 0,5 ÷ 2,4 mm 0,020” ÷ 3/32”
OPTIONAL STARTER KIT
35% 140A DC - 100A AC
CODE Ø
TT0103 1,6 mm 1/16” WR2 1
TT0104 2,4 mm 3/32” WR2 1
TT0105 3,2 mm 1/8” WR2 1

7
10

12
5
4
6

CODE 3
4 TQ0002 insulator 10 2 M12 x 1
5 TF0117 tig 17V torch head 1 1

6 TF0118 tig 17V flex torch head 1
CONSUMABLES
7 BW0066 back cap 117 mm 10 ARE NOT INCLUDED 13
INTO THE TORCH PACKAGE.
7 BW0061 valve 10 Connection Types
See the relevant page.
TSKM 25
8 EA0130 O-ring Ø 9x2 mm 10
TIG CONNECTION
8 TP0004 tube handle 1
2 m
12 TH0005 power cable - 4 m / 12.5’ 1 Gas Hose

12 TH0006 power cable - 8 m / 25’ 1
13 CX0081 TSK 50 - gas tube (2m) plug 1 Power TSKM 25 / TSK 50
