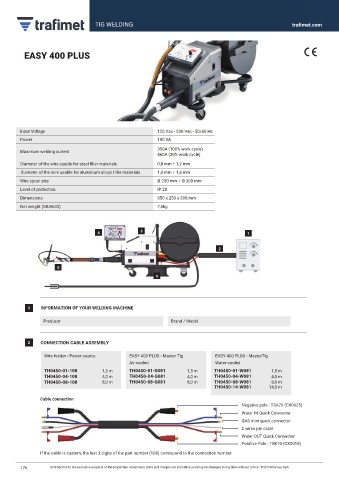

EASY 400 PLUS

Input Voltage 120 Vac - 230 Vac - 50/60 Hz
Power 100 VA
Maximum welding current 350A (100% work cycle)
460A (30% work cycle)
Diameter of the wire usable for steel filler materials 0,8 mm ÷ 1,2 mm
Diameter of the wire usable for aluminium alloys filler materials 1,0 mm ÷ 1,6 mm
Wire spool size Ø 200 mm ÷ Ø 300 mm
Level of protection IP 2X
Dimensions 350 x 250 x 300 mm
Net weight (MU0633) 7,5kg

4 3 1

2

5
6

1 INFORMATION OF YOUR WELDING MACHINE

Producer Brand / Model

2 CONNECTION CABLE ASSEMBLY

Wire feeder - Power source EASY 400 PLUS - Master Tig EASY 400 PLUS - MasterTig
Air-cooled Water-cooled
TH0450-01-108 1,5 m TH0450-01-G081 1,5 m TH0450-01-W081 1,5 m
TH0450-04-108 4,0 m TH0450-04-G081 4,0 m TH0450-04-W081 4,0 m
TH0450-08-108 8,0 m TH0450-08-G081 8,0 m TH0450-08-W081 8,0 m
TH0450-14-W081 14,0 m

Cable connection
• Negative pole : TSK70 (CX0025)
• Water IN Quick Connector
• GAS mini quick connector
• 2 wires pin cable
• Water OUT Quick Connector
• Positive Pole : TSK70 (CX0018)

If the cable is custom, the last 3 digits of the part number (108) correspond to the connection number
