TIG WELDING trafimet.com trafimet.com
PLASMA CUTTING

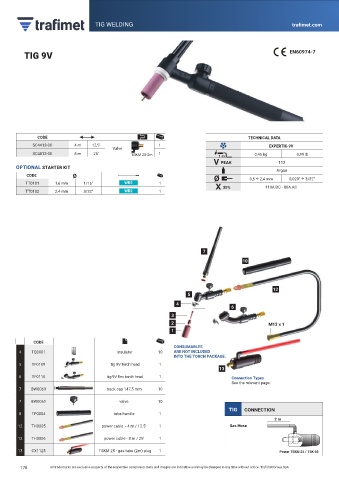

TIG 9V EN60974-7

CODE TECHNICAL DATA
SC4413-00 4 m 12,5’ 1 EXPERTIG 9V
Valve
SC4813-00 8 m 25’ TSKM 25-2m 1 1 m 0,45 kg 0,99 lb
V PEAK 113
OPTIONAL STARTER KIT
Argon
CODE Ø Ø 0,5 ÷ 2,4 mm 0,020” ÷ 3/32”
TT0101 1,6 mm 1/16” WR2 1
35% 110A DC - 80A AC
TT0102 2,4 mm 3/32” WR2 1

7
10

12
5
4
6
3
2 M12 x 1
1
CODE
CONSUMABLES
4 TQ0001 insulator 10 ARE NOT INCLUDED
INTO THE TORCH PACKAGE.
5 TF0109 tig 9V torch head 1
13
6 TF0110 tig 9V flex torch head 1 Connection Types
See the relevant page.
7 BW0063 back cap 147,5 mm 10
TSKM 25
7 BW0061 valve 10
TIG CONNECTION
8 TP0004 tube handle 1
2 m
12 TH0005 power cable - 4 m / 12.5’ 1 Gas Hose

12 TH0006 power cable - 8 m / 25’ 1
13 CX1125 TSKM 25 - gas tube (2m) plug 1 Power TSKM 25 / TSK 50
