TIG WELDING PLASMA CUTTING trafimet.com trafimet.com

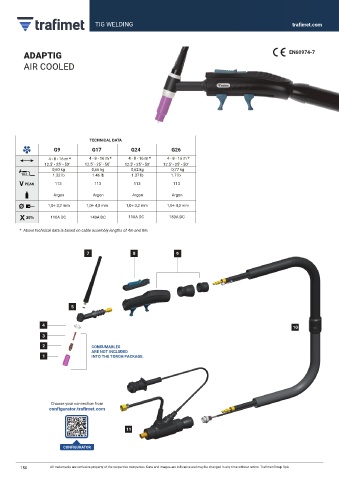

ADAPTIG EN60974-7
AIR COOLED

TECHNICAL DATA
G9 G17 G24 G26
4 - 8 - 16 m * 4 - 8 - 16 m * 4 - 8 - 16 m * 4 - 8 - 16 m *
12.5’ - 25’ - 50’ 12.5’ - 25’ - 50’ 12.5’ - 25’ - 50’ 12.5’ - 25’ - 50’
0,60 kg 0,66 kg 0,62 kg 0,77 kg
1.32 lb 1.46 lb 1.37 lb 1.7 lb
113 113 113 113
Argon Argon Argon Argon
1,0÷ 4,0 mm 1,0÷ 4,0 mm

110A DC 140A DC 110A DC 180A DC

* Above technical data is based on cable assembly lengths of 4m and 8m.

7 8 9

5

4 10
3
2 CONSUMABLES
ARE NOT INCLUDED
1 INTO THE TORCH PACKAGE.

Choose your connection from
configurator.trafimet.com

11

CONFIGURATOR
