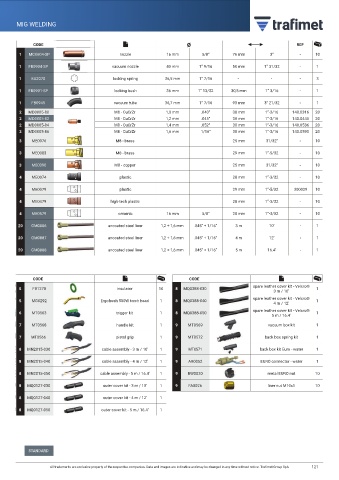

Page 121 - trafimet

MIG WELDING
EXPRESCUT S

CODE Ø REF
1 MC0604-SP nozzle 16 mm 5/8” 76 mm 3” - 10

1 FB0904-SP vacuum nozzle 40 mm 1” 9/16 50 mm 1” 31/32 - 1

1 EA2070 locking spring 36,5 mm 1” 7/16 - - - 3
1 FB0901-SP locking bush 36 mm 1” 13/32 30,5 mm 1” 3/16 - 1

1 FB0945 vacuum tube 36,7 mm 1” 7/16 93 mm 3” 21/32 - 1
2 MD0005-80 M8 - CuCrZr 1,0 mm .040” 30 mm 1”-3/16 140.0316 20
2 MD0005-82 M8 - CuCrZr 1,2 mm .045” 30 mm 1”-3/16 140.0445 20
2 MD0005-84 M8 - CuCrZr 1,4 mm .052” 30 mm 1”-3/16 140.0536 20
2 MD0005-86 M8 - CuCrZr 1,6 mm 1/16” 30 mm 1”-3/16 140.0590 20
3 ME0076 M8 - brass 25 mm 31/32” - 10

3 ME0083 M8 - brass 29 mm 1”-5/32 - 10

3 ME0390 M8 - copper 25 mm 31/32” - 10
4 ME0074 plastic 28 mm 1”-3/32 - 10

4 ME0079 plastic 29 mm 1”-5/32 300029 10

4 ME0479 high-tech plastic 28 mm 1”-3/32 - 10
4 ME0579 ceramic 16 mm 5/8” 28 mm 1”-3/32 - 10

20 GM0886 uncoated steel liner 1,2 ÷ 1,6 mm .045” ÷ 1/16” 3 m 10’ - 1

20 GM0887 uncoated steel liner 1,2 ÷ 1,6 mm .045” ÷ 1/16” 4 m 12’ - 1
20 GM0888 uncoated steel liner 1,2 ÷ 1,6 mm .045” ÷ 1/16” 5 m 16.4’ - 1

CODE CODE

5 FB1278 insulator 10 8 MQ0388-030 spare leather cover kit - Velcro® 1
3 m / 10’
5 MG0292 Ergofresh 500W torch head 1 8 MQ0388-040 spare leather cover kit - Velcro® 1
4 m / 12’
spare leather cover kit - Velcro®
6 MT0563 trigger kit 1 8 MQ0388-050 1
5 m / 16.4’
7 MT0568 handle kit 1 9 MT0569 vacuum box kit 1
7 MT0566 pistol grip 1 9 MT0572 back box spring kit 1

8 MN2015-030 cable assembly - 3 m / 10’ 1 9 MT0571 back box kit Euro - water 1

8 MN2015-040 cable assembly - 4 m / 12’ 1 9 AR0052 EURO connector - water 1
8 MN2015-050 cable assembly - 5 m / 16.4’ 1 9 BW0020 metal EURO nut 10

8 MQ0127-030 outer cover kit - 3 m / 10’ 1 9 FA0026 liner nut M10x1 10

8 MQ0127-040 outer cover kit - 4 m / 12’ 1
8 MQ0127-050 outer cover kit - 5 m / 16.4’ 1

STANDARD
