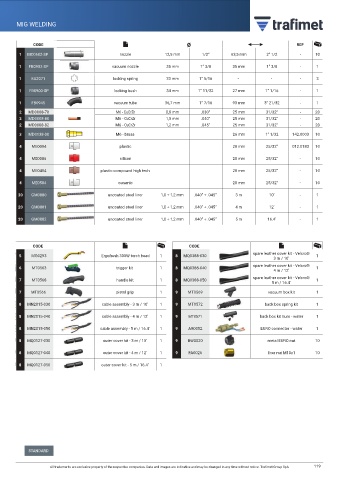

MIG WELDING
EXPRESCUT S

CODE Ø REF
1 MC0602-SP nozzle 12,5 mm 1/2” 63,5 mm 2” 1/2 - 10

1 FB0902-SP vacuum nozzle 35 mm 1” 3/8 35 mm 1” 3/8 - 1

1 EA2071 locking spring 33 mm 1” 5/16 - - - 3
1 FB0900-SP locking bush 34 mm 1” 11/32 27 mm 1” 1/16 - 1

1 FB0945 vacuum tube 36,7 mm 1” 7/16 93 mm 3” 21/32 - 1
2 MD0008-78 M6 - CuCrZr 0,8 mm .030” 25 mm 31/32” - 20
2 MD0008-80 M6 - CuCrZr 1,0 mm .040” 25 mm 31/32” - 20
2 MD0008-82 M6 - CuCrZr 1,2 mm .045” 25 mm 31/32” - 20
3 MD0138-00 M6 - brass 26 mm 1” 1/32 142.0003 10

4 ME0084 plastic 20 mm 25/32” 012.0183 10
4 ME0086 silicon 20 mm 25/32” - 10

4 ME0484 plastic compound high tech 20 mm 25/32” - 10

4 ME0584 ceramic 20 mm 25/32” - 10
20 GM0880 uncoated steel liner 1,0 ÷ 1,2 mm .040” ÷ .045” 3 m 10’ - 1

20 GM0881 uncoated steel liner 1,0 ÷ 1,2 mm .040” ÷ .045” 4 m 12’ - 1
20 GM0882 uncoated steel liner 1,0 ÷ 1,2 mm .040” ÷ .045” 5 m 16.4’ - 1

CODE CODE

5 MG0293 Ergofresh 300W torch head 1 8 MQ0388-030 spare leather cover kit - Velcro® 1
3 m / 10’
spare leather cover kit - Velcro®
6 MT0563 trigger kit 1 8 MQ0388-040 1
4 m / 12’
spare leather cover kit - Velcro®
7 MT0568 handle kit 1 8 MQ0388-050 1
5 m / 16.4’
7 MT0566 pistol grip 1 9 MT0569 vacuum box kit 1
8 MN2015-030 cable assembly - 3 m / 10’ 1 9 MT0572 back box spring kit 1

8 MN2015-040 cable assembly - 4 m / 12’ 1 9 MT0571 back box kit Euro - water 1
8 MN2015-050 cable assembly - 5 m / 16.4’ 1 9 AR0052 EURO connector - water 1

8 MQ0127-030 outer cover kit - 3 m / 10’ 1 9 BW0020 metal EURO nut 10

8 MQ0127-040 outer cover kit - 4 m / 12’ 1 9 FA0026 liner nut M10x1 10
8 MQ0127-050 outer cover kit - 5 m / 16.4’ 1

ST ANDARD
STANDARD
