EXPRESCUT SSMA CUTTING

019 CENTRAL ADAPTOR 024 CENTRAL ADAPTOR 304 TRAFIMECTOR ®
STANDARD TRAFIMET CONFIG. STANDARD TRAFIMET CONFIG.
trigger
trigger
safety 9 1 safety 9 1 safety 10 1
current cable 8 2 current cable 8 2 current cable 8 9 2 3
pilot 7 3 pilot 7 3 pilot 7 4
arc 6 5 4 arc 6 5 4 arc 6 5

Central Adaptor Central Adaptor Trafimector ®

020 CENTRAL ADAPTOR 025 CENTRAL ADAPTOR 319 TRAFIMECTOR ®
STANDARD TRAFIMET CONFIG.

safety 9 1 safety 9 1 safety 10 1
current cable 8 2 current cable 8 2 current cable 8 9 2 3
pilot 7 3 pilot 7 3 pilot 7 4
arc 6 5 4 arc 6 5 4 arc 6 5

Central Adaptor Central Adaptor Trafimector ®

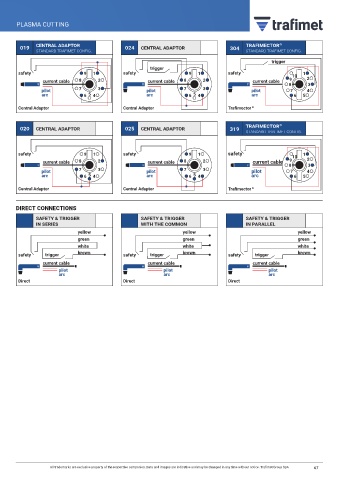

DIRECT CONNECTIONS
SAFETY & TRIGGER SAFETY & TRIGGER SAFETY & TRIGGER
IN SERIES WITH THE COMMON IN PARALLEL
yellow yellow yellow
green green green
white white white
safety trigger brown safety trigger brown safety trigger brown
current cable current cable current cable
pilot pilot pilot
arc arc arc
Direct Direct Direct
