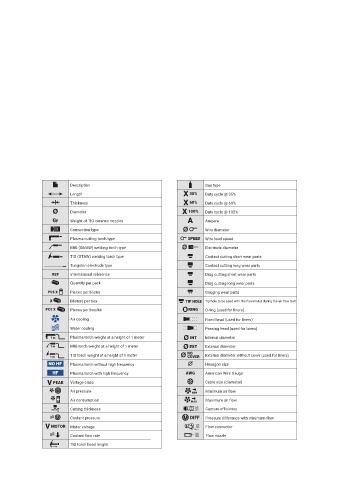

Description Gas type
Length X 35% Duty cycle @ 35%
Thickness X 60% Duty cycle @ 60%
Diameter X 100% Duty cycle @ 100%
Gr Weight of TIG ceramic nozzles A Ampere
Connection type Wire diameter
Plasma cutting torch type SPEED Wire feed speed
MIG (GMAW) welding torch type Electrode diameter
TIG (GTAW) welding torch type Contact cutting short wear parts
Tungsten electrode type Contact cutting long wear parts
REF International reference Drag cutting short wear parts
Quantity per pack Drag cutting long wear parts

PCS X Pieces per blister Gouging wear parts
Blisters per box TIP HOLE Tip hole to be used with the flow meter during the air flow test
PCS X Pieces per box/kit RING O-ring (used for liners)
Air cooling Fixed head (used for liners)
Water cooling Passing head (used for liners)

1 m Plasma torch weight at a height of 1 meter INT Internal diameter
1 m MIG torch weight at a height of 1 meter EXT External diameter
TIG torch weight at a height of 1 meter NO External diameter without cover (used for liners)
1 m COVER
NO HF Plasma torch without high frequency Hexagon size
HF Plasma torch with high frequency AWG American Wire Gauge
V PEAK Voltage class Cable size (diameter)
Air pressure MIN Minimum air flow
Air consumption MAX Maximum air flow
Cutting thickness Capture efficiency
Coolant pressure DIFF Pressure difference with minimum flow
V MOTOR Motor voltage Flow connector
Coolant flow rate Flow nozzle
TIG torch head lenght
